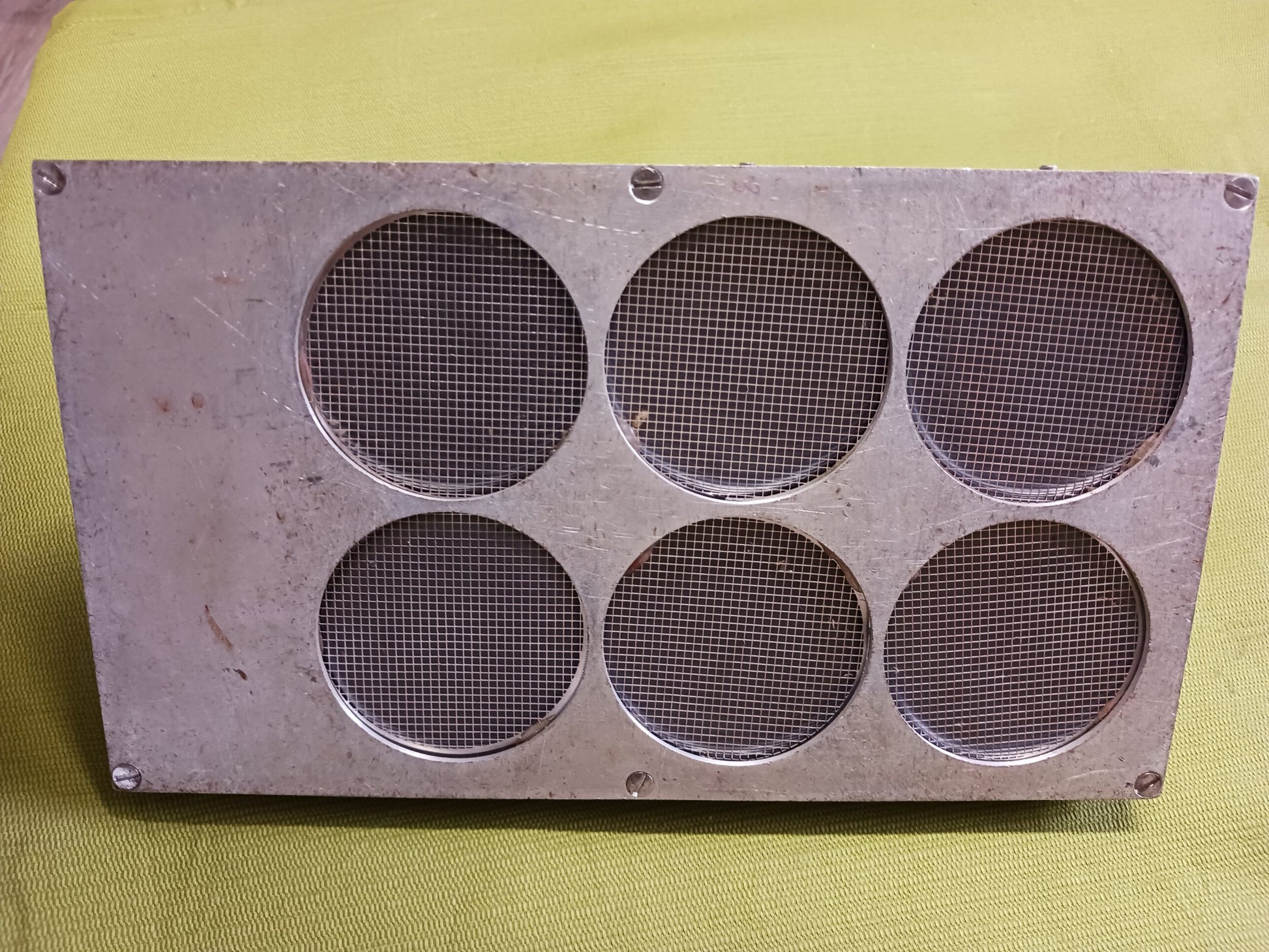

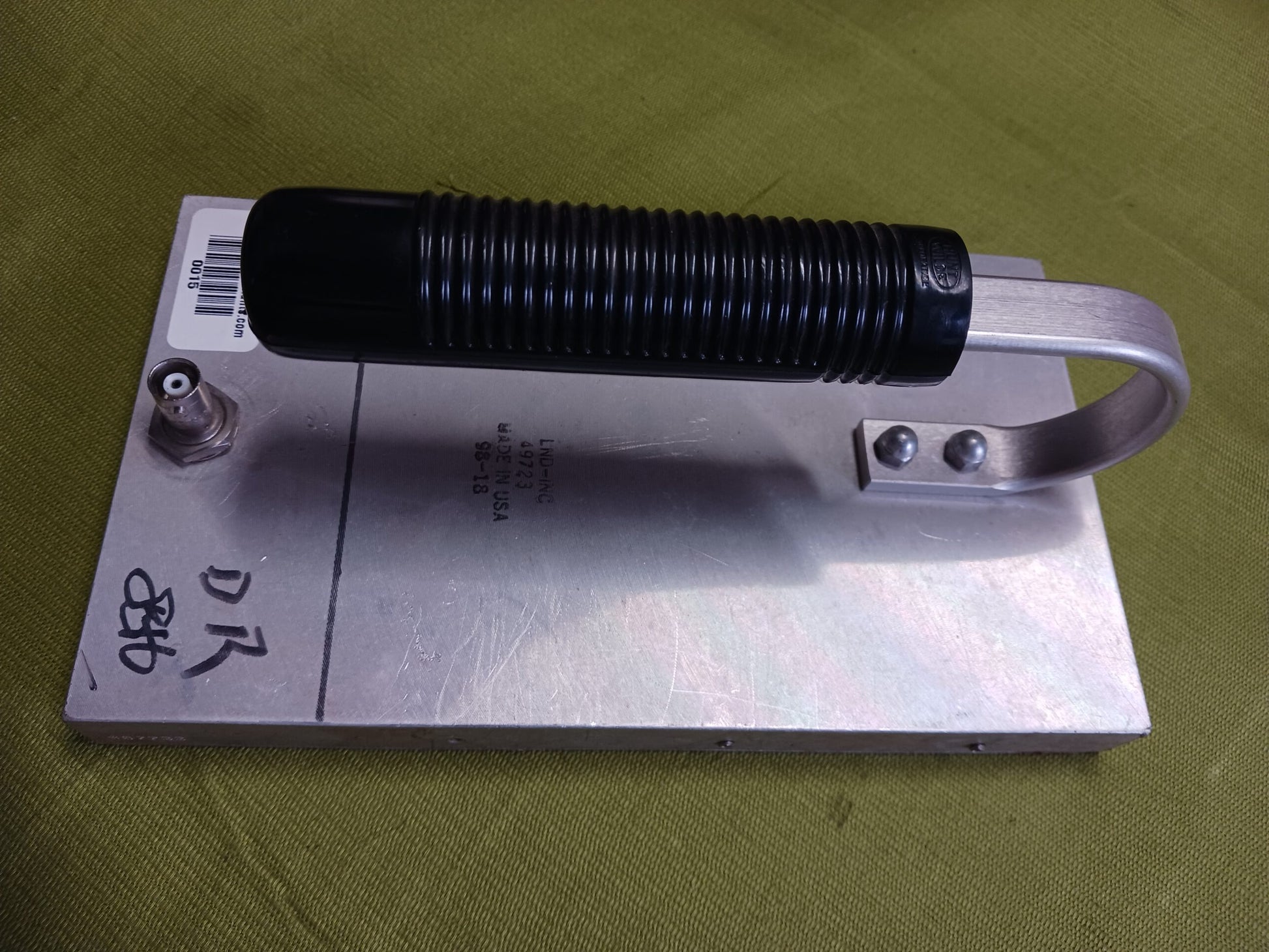

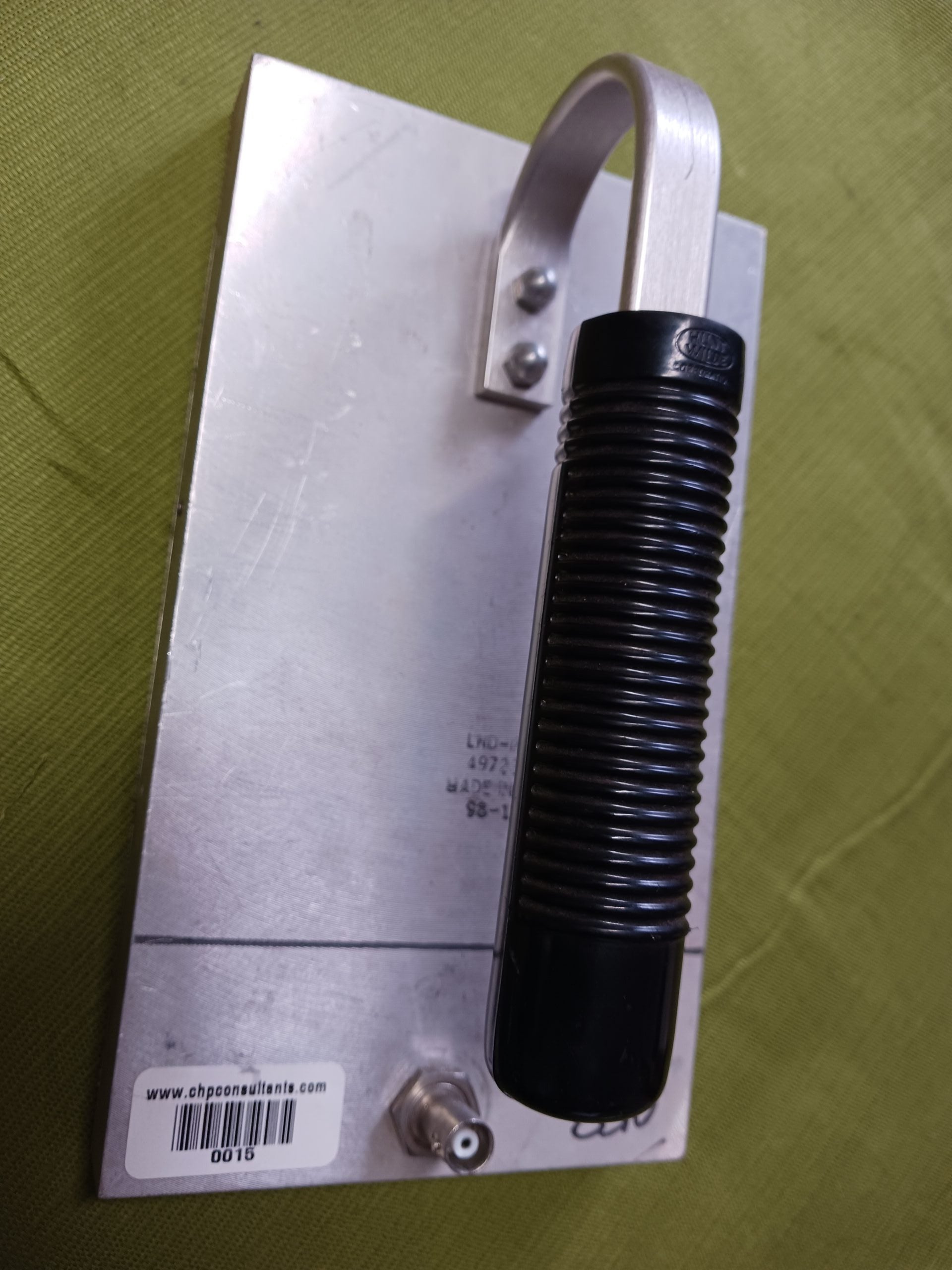

LND, Inc. Large area pancake assembly alpha- beta – gamma gm counter
$800.00
Low stock! Only 1 left
Regular price
$800.00
Sale price
$800.00
Regular price
$1,600.00
Unit price
per
Couldn't load pickup availability
Up to $800 off
49723 98-18
ELECTRICAL SPECIFICATIONS
| RECOMMENDED OPERATING VOLTAGE (VOLTS) | 900 |
| OPERATING VOLTAGE RANGE (VOLTS) | 850-1000 |
| GAMMA SENSITIVITY Cs-137 (CPS/mR/HR) | 360 |
| WEIGHT (GRAMS) | 900 |
| PLATEAU SLOPE (%/100 VOLTS) | 10 |
| BACKGROUND SHIELDED 50MM PB (CPM) | 100 |

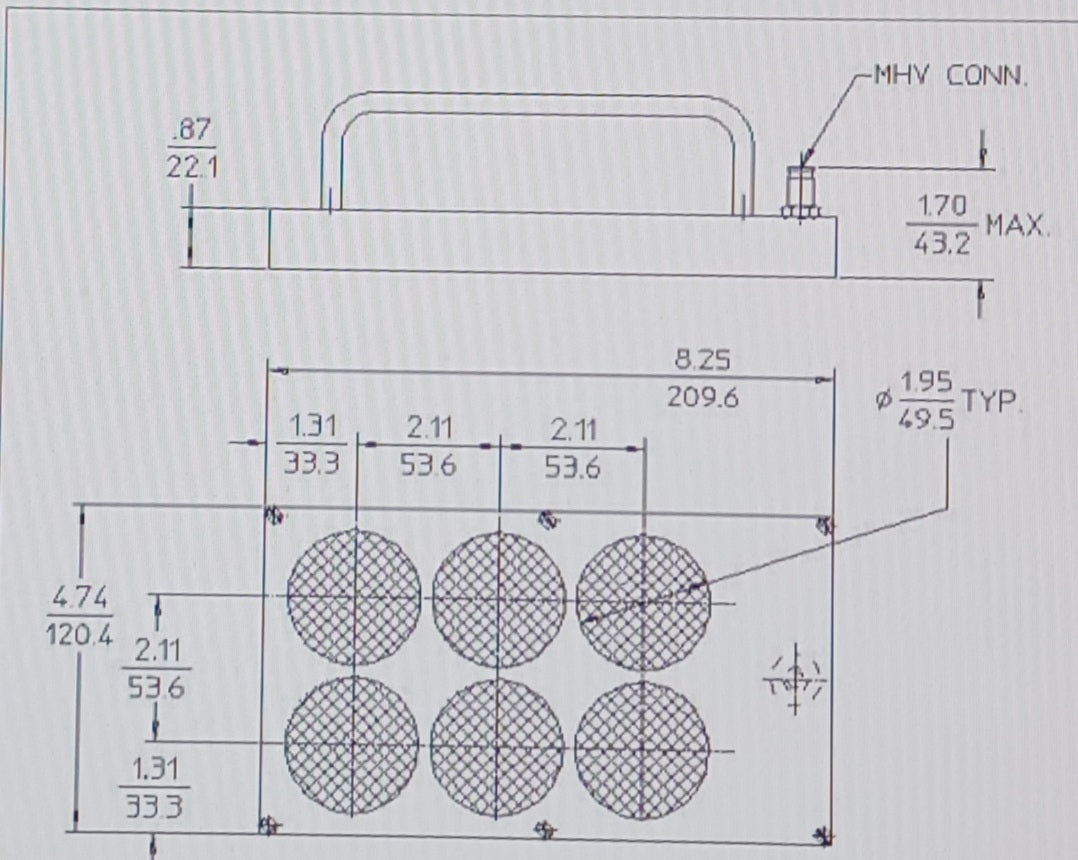

GENERAL SPECIFICATIONS
| MAXIMUM LENGTH (INCH/MM) | 8.25/209.6 |
| GAS FILLING | Neon |
| CATHODE MATERIAL (INTERNAL/EXTERNAL) | Stainless Steel |
| CONNECTOR | MHV |
| OPERATING TEMPERATURE RANGE °C | -55 to +75 |
| MAXIMUM WIDTH (INCH/MM) | 4.74/120.4 |
| PATH LENGTH (INCH/MM) | 0.50/12.7 |
