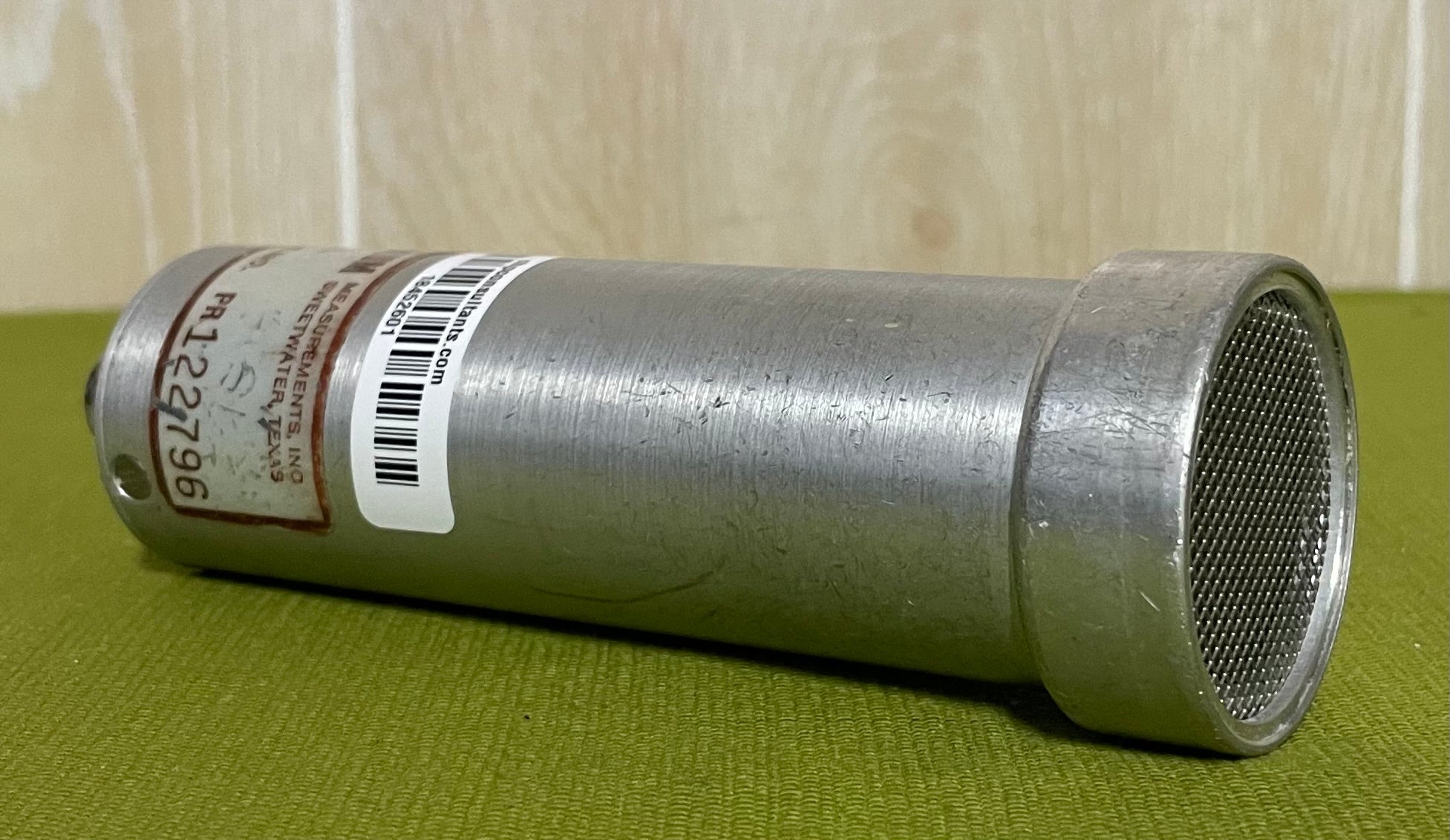

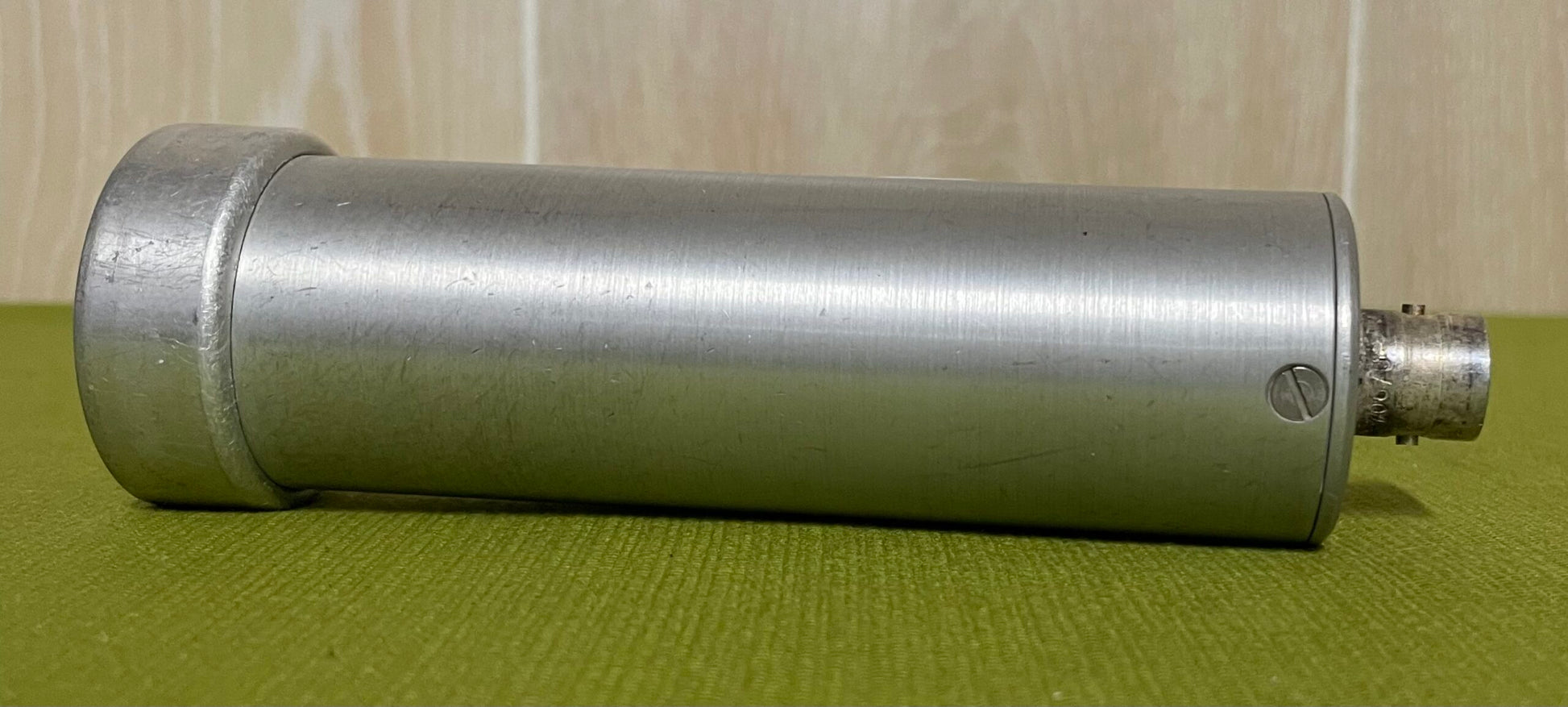

Ludlum 44-7 End Window G-M Detector - USED

APPLICATION: alpha, beta, gamma radiation survey; sample counting
RADIATION DETECTOR: end window, halogen quenched GM

Add a Counts.Pro for $499 to digitize your surveys and turn your meter into a digital scaler/ratemeter/cloud connected datalogger! Take your meter to the next level with Counts.Pro

EFFICIENCY(2π): 2% - ¹⁴C; 10% - ⁹⁰Sr/⁹⁰Y; 7% - ²³⁹Pu, ⁹⁹Tc - 7%, ¹²⁵I - 0.1%

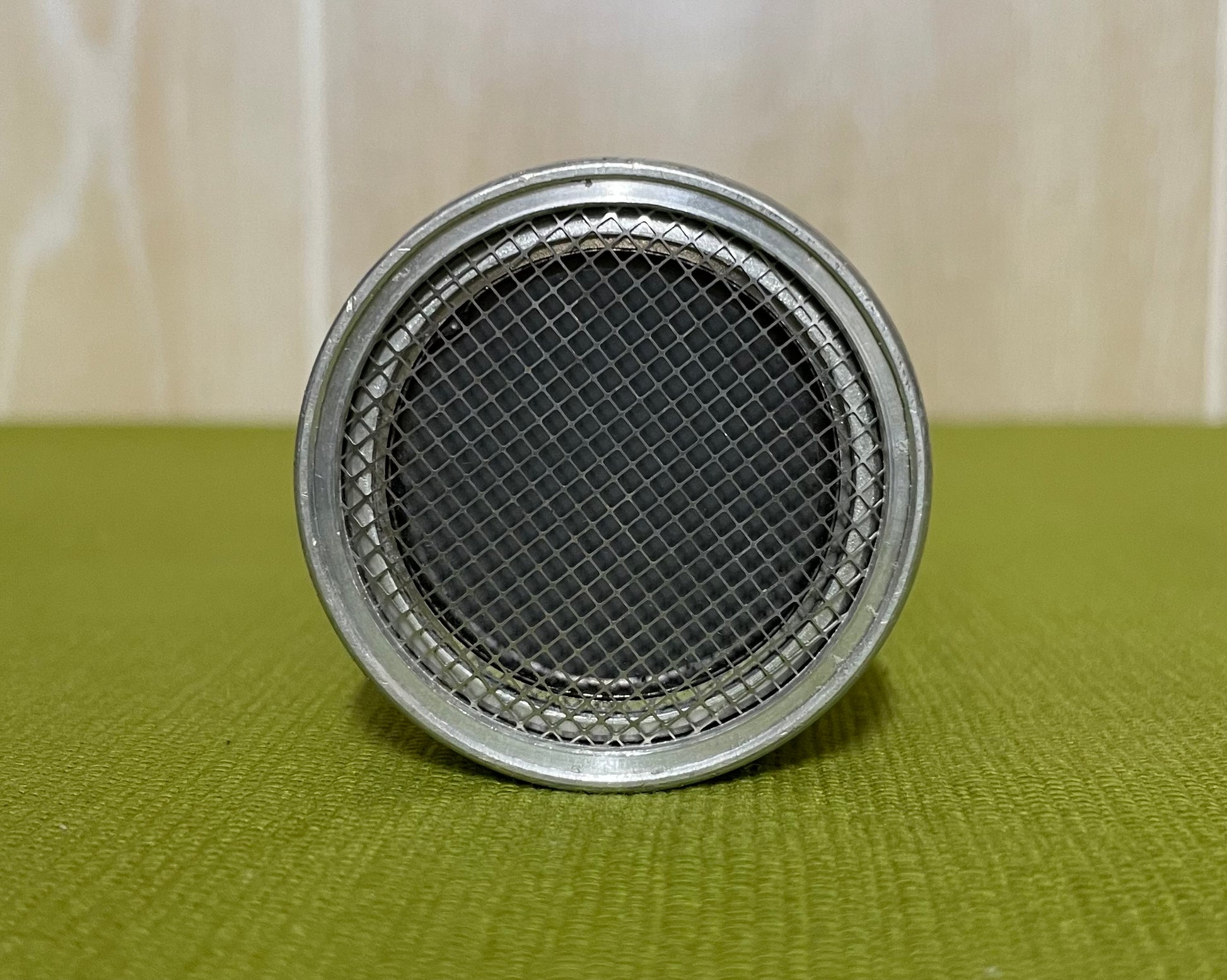

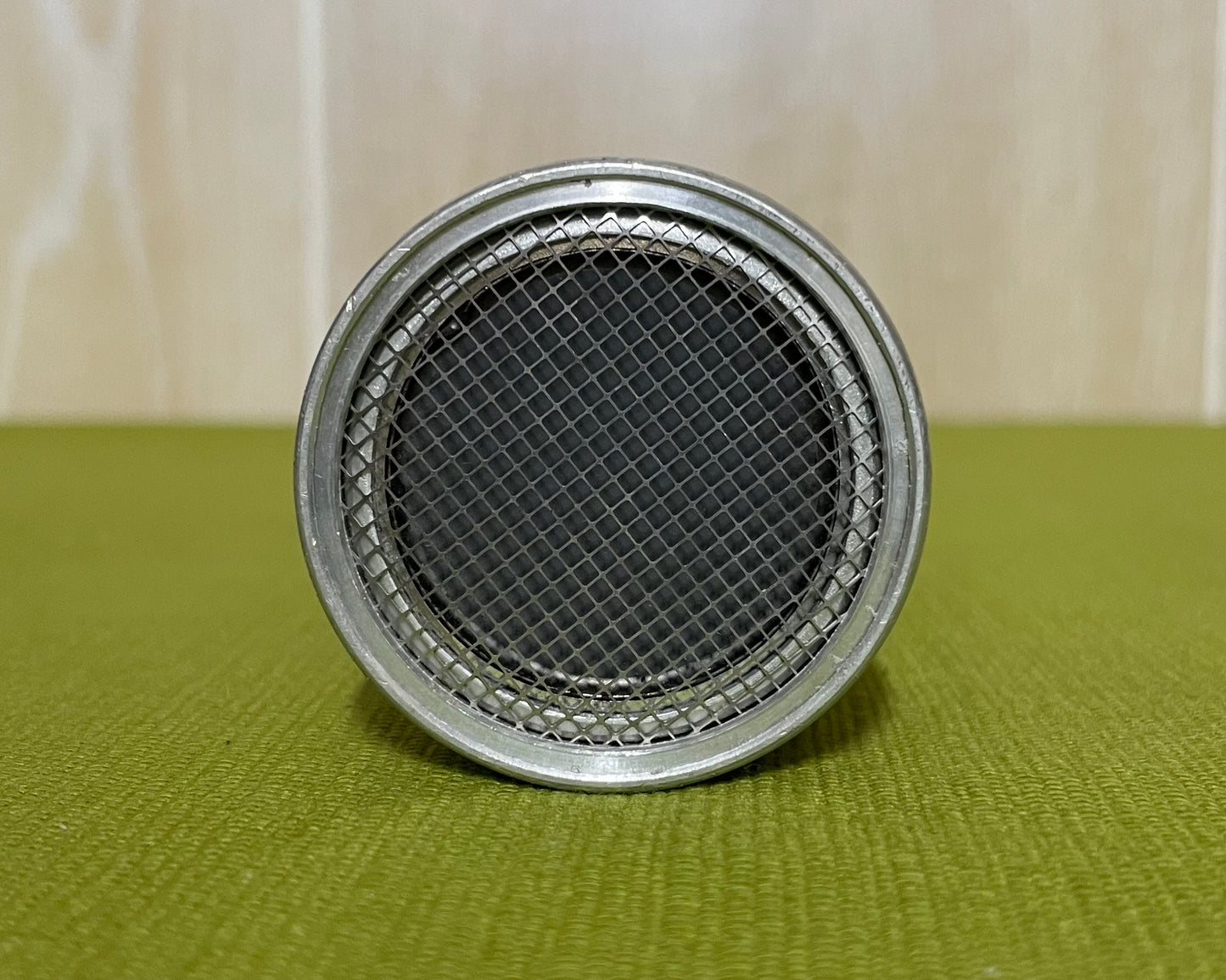

WINDOW: 1.7 ± 0.3 mg/cm² mica
WINDOW AREA: 6 cm² (0.93 in²) active; 5 cm² (0.78 in²) open
SENSITIVITY: 2100 cpm/mR/hr (¹³⁷Cs gamma)
ENERGY RESPONSE: energy dependant

BACKGROUND: 40 cpm
DEAD TIME: typically 200 microseconds
COMPATIBLE INSTRUMENTS: general purpose radiation survey meters, ratemeters and scalers
OPERATING VOLTAGE: 900 volts

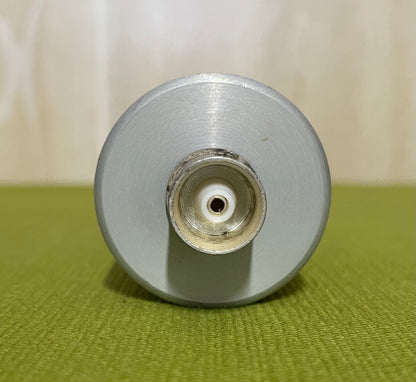

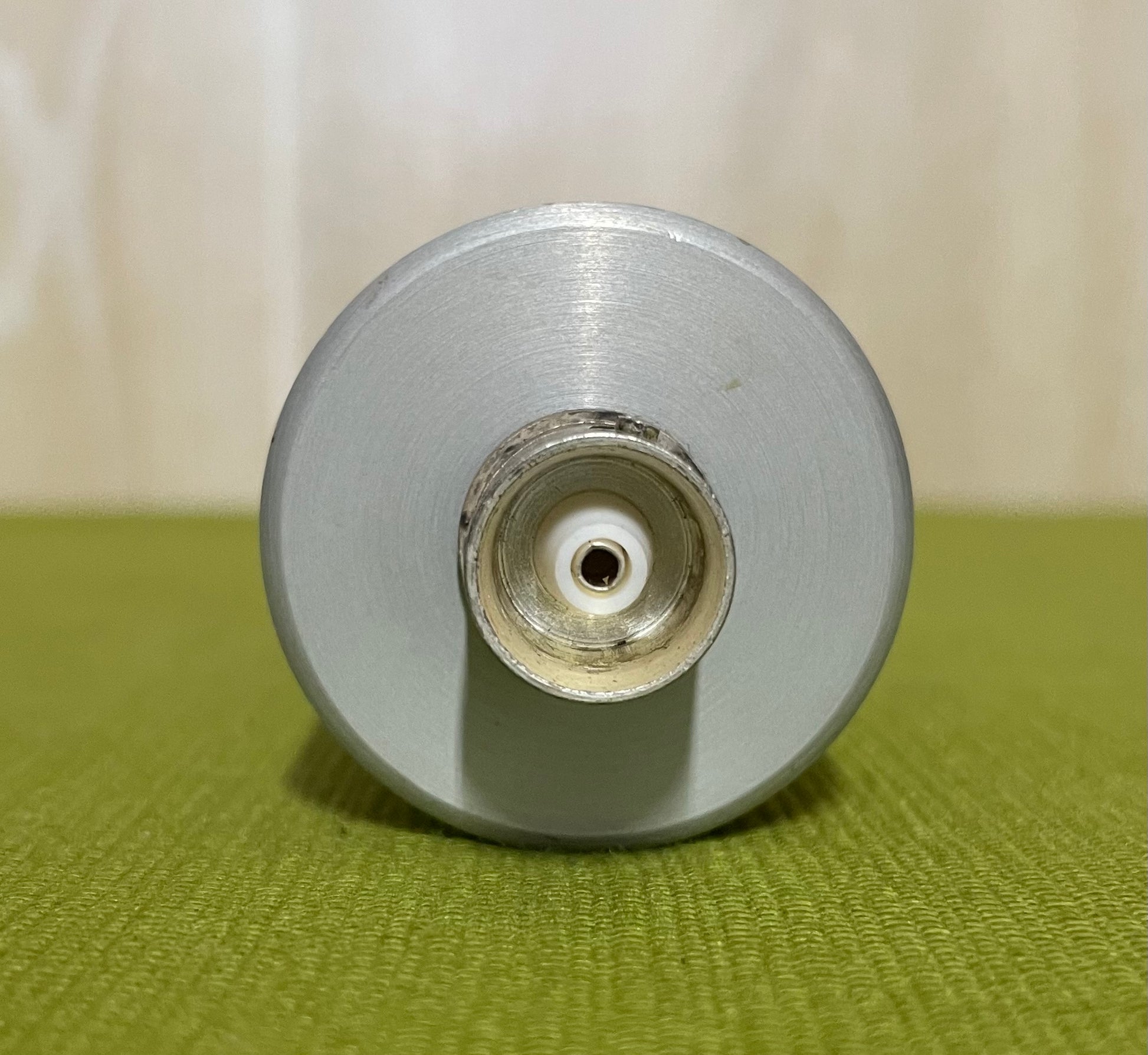

CONNECTOR: series "C" (others available)
CONSTRUCTION: anodized aluminum housing
SIZE: 1.8 x 5.8 in. (4.6 x 14.7 cm) (Dia x L)
WEIGHT: 1 lb (0.5 kg)
