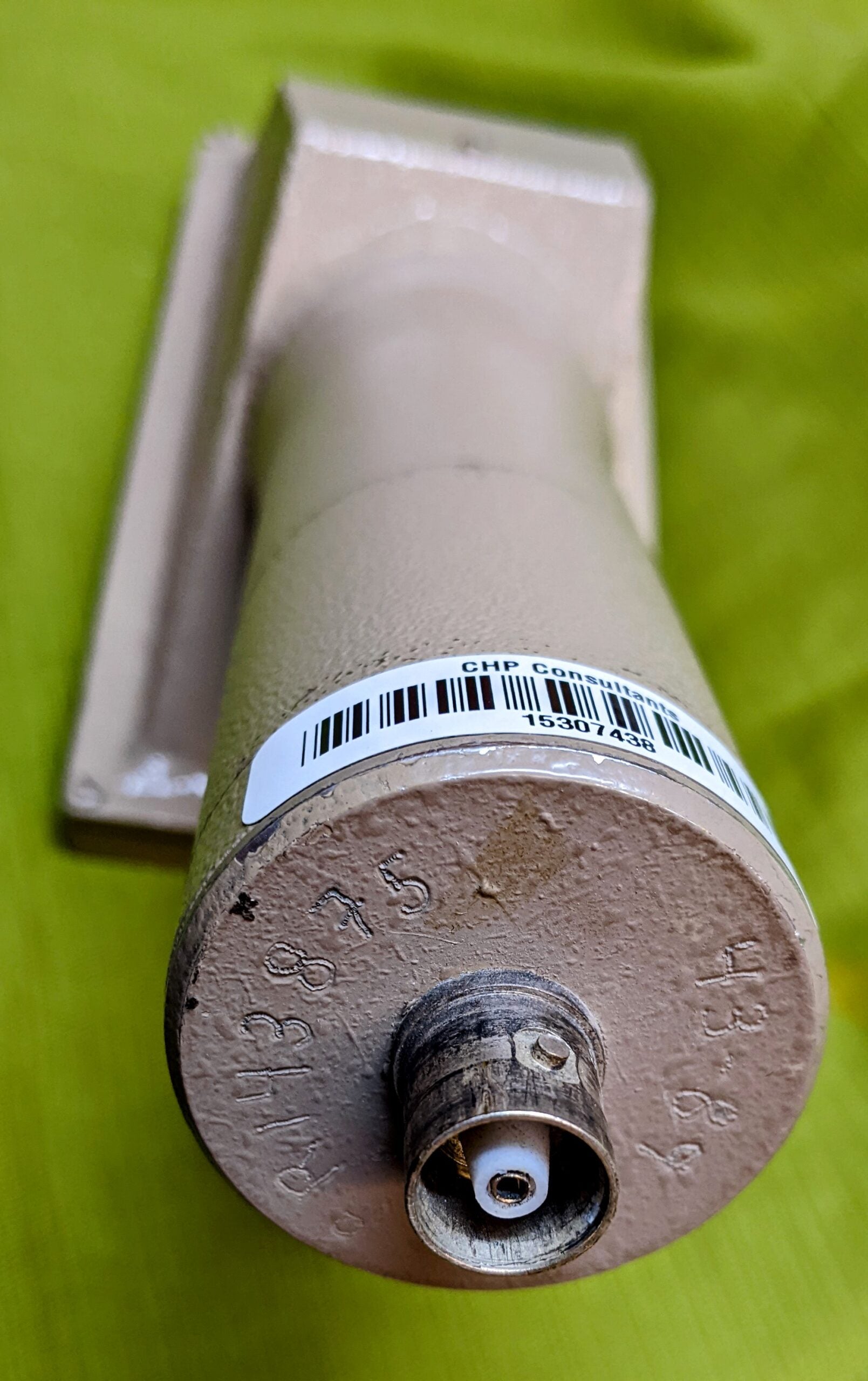

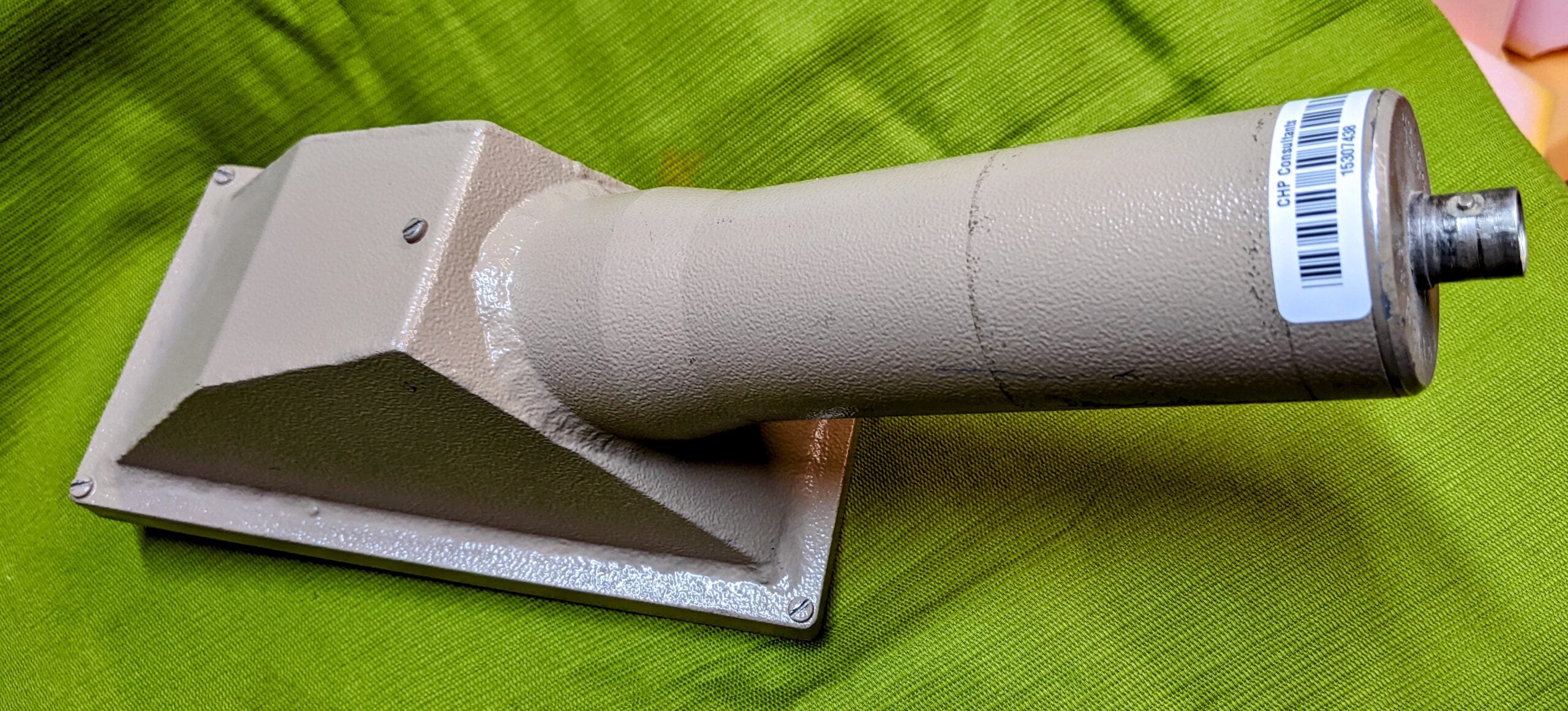

Ludlum Alpha-Beta Scintillation Detector Model 43-89
$865.00
Low stock! Only 7 left
Regular price
$865.00
Sale price
$865.00
Regular price
$1,725.00
Unit price
per
Couldn't load pickup availability
Up to $860 off
| Indicated Use | Simultaneous alpha and beta survey |
|---|---|
| Detector Type | ZnS(Ag) adhered to 0.25 mm (0.01 in) thick plastic scintillator |
| Window | 1.2 mg/cm2 metalized polyester |
| Window Area |
Active: approx. 125 cm2 (19.4 in2) Open: approx. 100 cm2 (15.5 in2) |

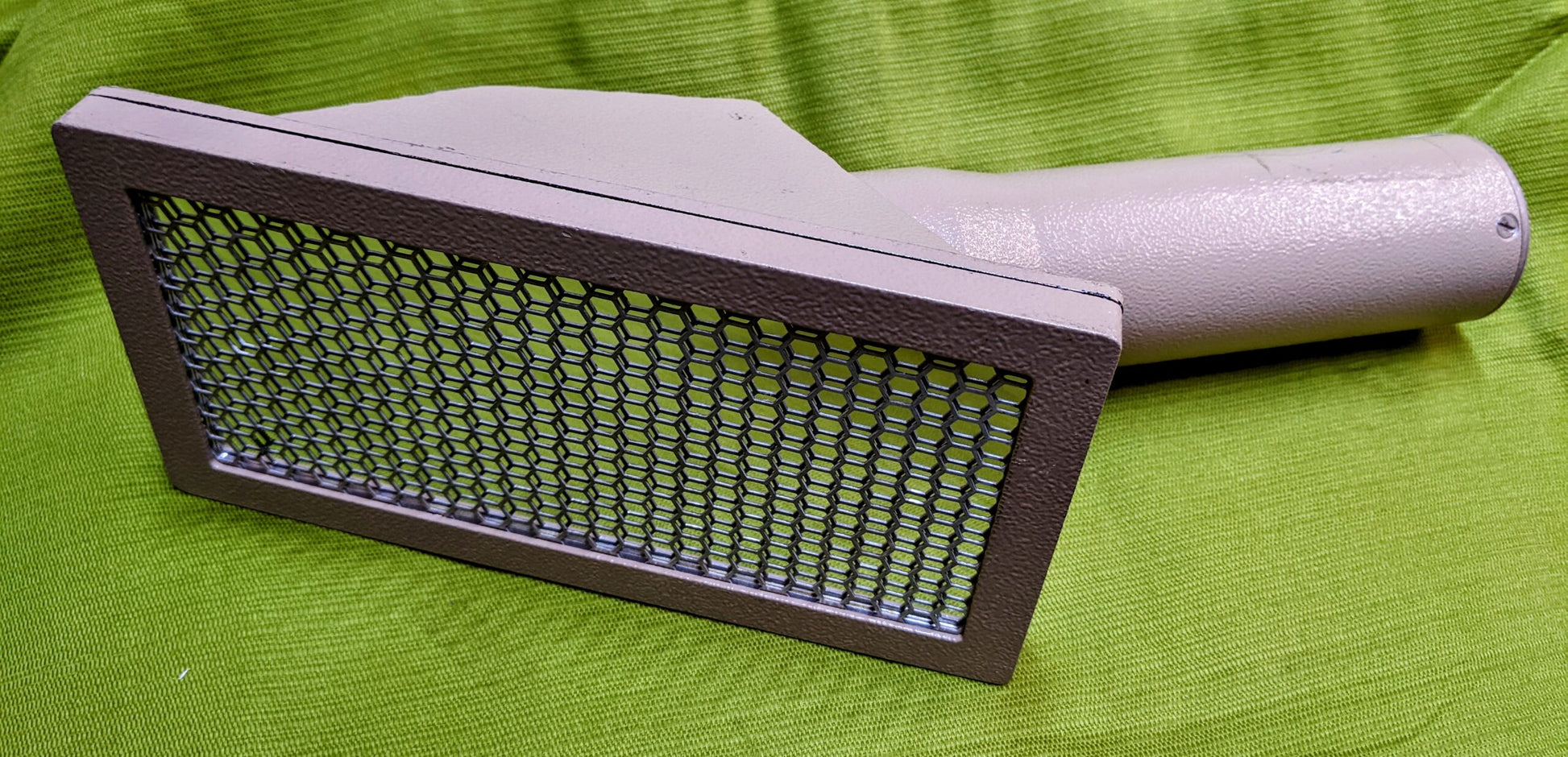

| Protective Screen | 0.76 mm (0.030 in.) thick stainless steel, 6.4 mm (0.25 in.) hex, 79% open Outer Dimensions (L x W): 168 x 92 mm (6.6 x 3.6 in.) |
| Efficiency (4π) |
239Pu: 17.5% 99Tc: 10% 90Sr/90Y: 17.5% |
| Typical Background (10 µR/hr field) |
Alpha: 3 cpm or less Beta: 300 cpm or less |
| Crosstalk |
Alpha to Beta: 10% or less Beta to Alpha: 1% or less |
| Detector Uniformity | 10% or less from average reading |
| Gamma Sensitivity | approx. 20 cpm per µR/hr |
| Photomultiplier Tube | 38 mm (1.5 in.) diameter |
| Operating Voltage | typically 500 to 1000 V (1500 V max.) |
| Temperature Range | -20 to 50 °C (-4 to 122 °F) |
| Environmental Rating | IP rating of 63 |
