Ludlum Model 2401-EC2 Pocket-Size Survey Meter with Counts.pro installed
$900.00
Low stock! Only 1 left
Regular price
$900.00
Sale price
$900.00
Regular price
$1,800.00
Unit price
per
Couldn't load pickup availability
Up to $900 off
|
The Model 2401-EC2 instrument is a pocket-size radiation detection meter with an integrated energy-compensated GM tube for measuring gamma exposure. The meter measures 0 to 2 R/hr (0 to 20 mSv/h) exposure rate. The metal case offers excellent protection against abuse. The overall size and integrated design facilitate ease of use.
Counts.Pro installed |
Features
- Integrated Meter with Energy-Compensated GM Detector
- Simple to Use
- Low Cost
| Indicated Use | Gamma survey | |
|---|---|---|
| Detector | Energy-compensated GM tube | |
| Range | 0 to 20 mSv/h (0 to 2 R/hr) | |
| Sensitivity (137Cs gamma) | Typically 100 cpm per mR/hr | |
| Energy Response | Reading with 20% of true value | |
| Meter Dial | 0 - 20 mR/hr; BAT OK | |
| Multipliers | x1, x10, and x100 | |
| Response Time | Typically 11 s from 10% to 90% of final reading | |
| Alarm | No | |
| Audio | Click-per-event, may be turned off by moving selector to QUIET position | |
| Power | 9 volt battery | |
| Battery Life | Typically 250 hours with alkaline battery at normal background levels | |
| Construction | Drawn and cast aluminum, with membrane panel | |
| Size (H x W x L) | 4.6 x 8.4 x 13.5 cm (1.8 x 3.3 x 5.3 in.) | |

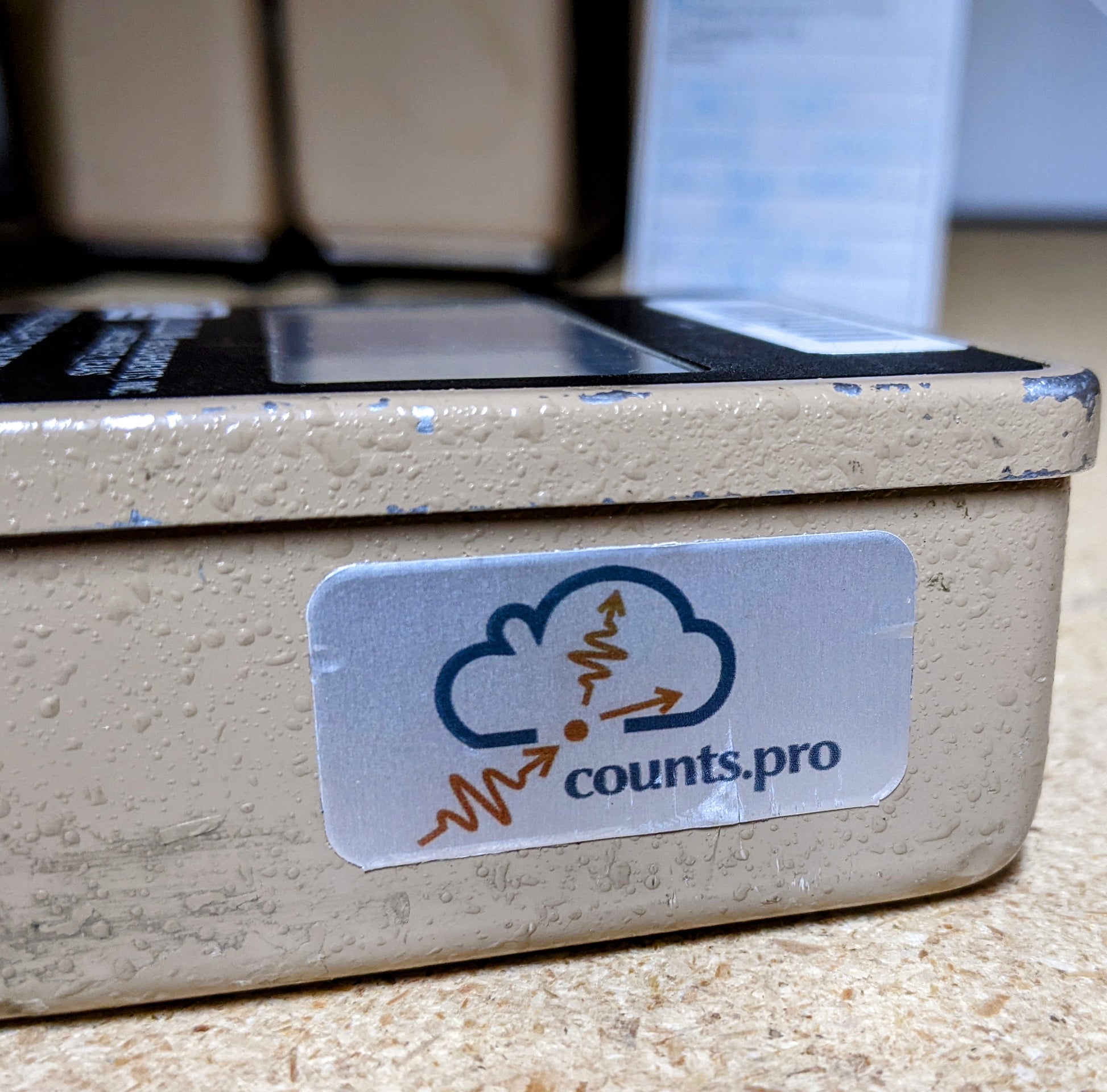

Counts.Pro installed
Counts.Pro makes your detectors more functional and easy to use than the most expensive meters available today.
We are the inventor of the Counts.Pro and regularly sell and service radiation detectors for nuclear industry, medical industry, and hobbyist clients. Counts.Pro uses a free App (iOS and Android) to record and share every count measured by any pulse generating radiation detector (GM, proportional, neutron, Scintillation). With Counts.Pro you can record your surveys for review and analysis, or take long term scaler counts to measure very low radiation level changes. Each data set includes every count measured by your meter, date, time, GPS, meter and probe info, operator inputs, and notes. Counts.Pro can measure 1 or 2 channels an includes an alarm feature for each channel.
Counts.Pro (which is a top level domain for more research) allows you to record all your measurements and works with any detector, old or new, that measures pulses. Counts.Pro uses the GPS in your smart phone (which can be enhanced to provide sub meter GPS) to record location. Gone are the days when you only see a dancing needle on your meter and wonder what the true reading is. Data is stored in a .csv format which can be opened by any typical spreadsheet. You don't need special software to analyze what you get, so your files are "future proof".
Counts.Pro gives you the following information:
On the App Screen while running:
Count Rate
Actual number of counts (Scaler)
Elapsed Time
Settings for count times (including infinite)
Start/Stop button
In the Data file (collected when you run a count time):
Date and time of EACH measurement
Actual counts in 0.25 second intervals with time stamp
Running count rate
Total Counts
Elapsed time
GPS location (if enabled) - 3rd party GPS units can be bought to give sub-meter GPS to iOS Devices.
Three user defined fields of unlimited length including the ability to take in measurement notes of observations.
Meter and probe model and serial numbers
Each count is stored on your device and can be emailed or shared using your smart device.
We have installed these in Ludlum Meters, Bicron Meters, Thermo Radeye's, and other count rate meters. Counts.Pro turns your meter into something more functional than any meter you can buy for thousands more. With no software requirements, you are never held hostage to your data.
