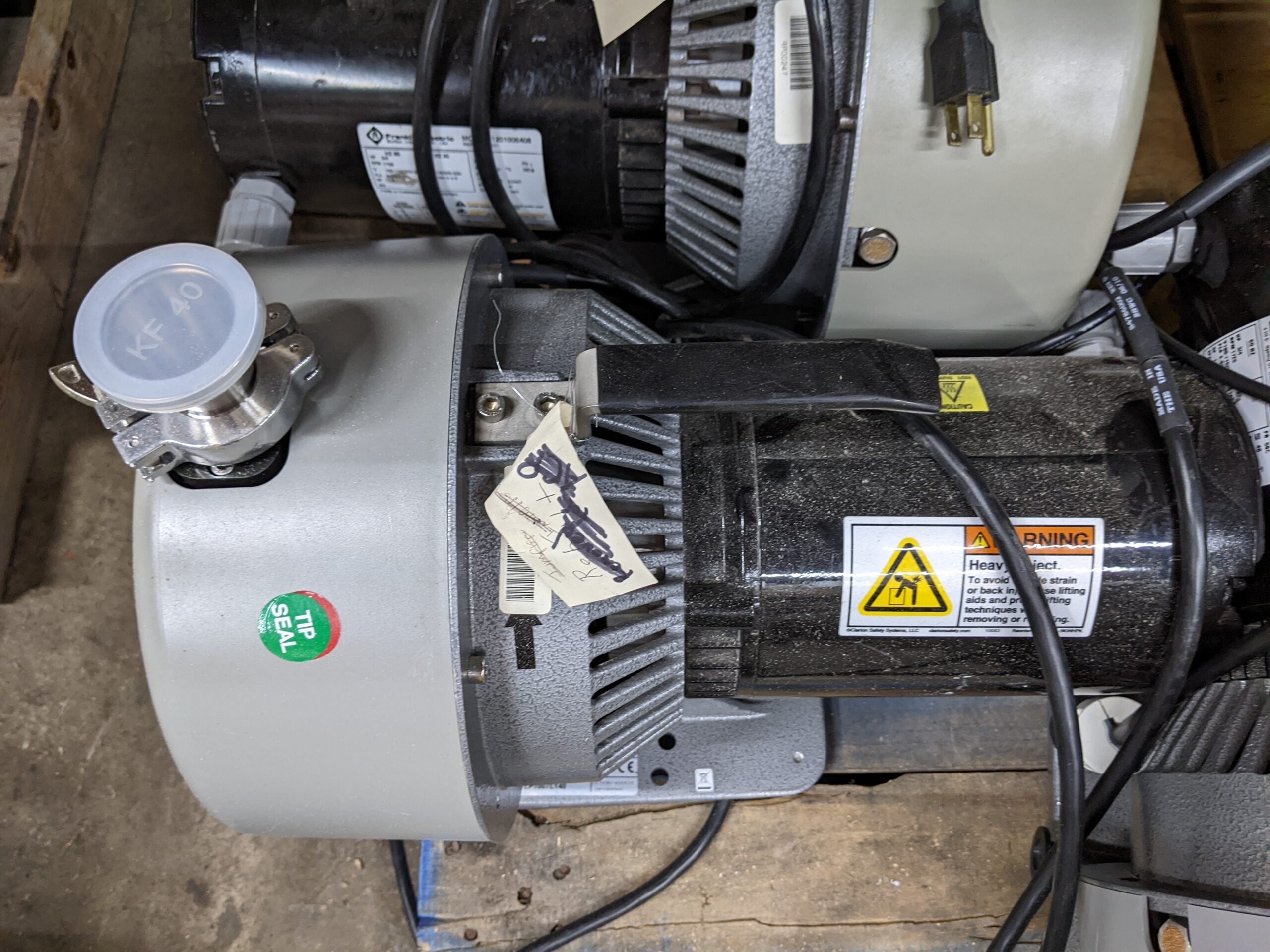

Varian Tri Scroll Vacuum Pump PTS03001UNIV
$3,500.00
Low stock! Only 7 left
Regular price
$3,500.00
Sale price
$3,500.00
Regular price
$7,000.00
Unit price
per
Couldn't load pickup availability
Up to $3,500 off
The TriScroll dry scroll pump features oil-free, high pumping speed and low ultimate pressure to provide clean, dry vacuum. Long-life tip seals typically require replacement on a yearly basis. The pump features bearing purge port to extend the life of the crank bearings. An automatic air ballast manages water vapor without reducing pumping speed.

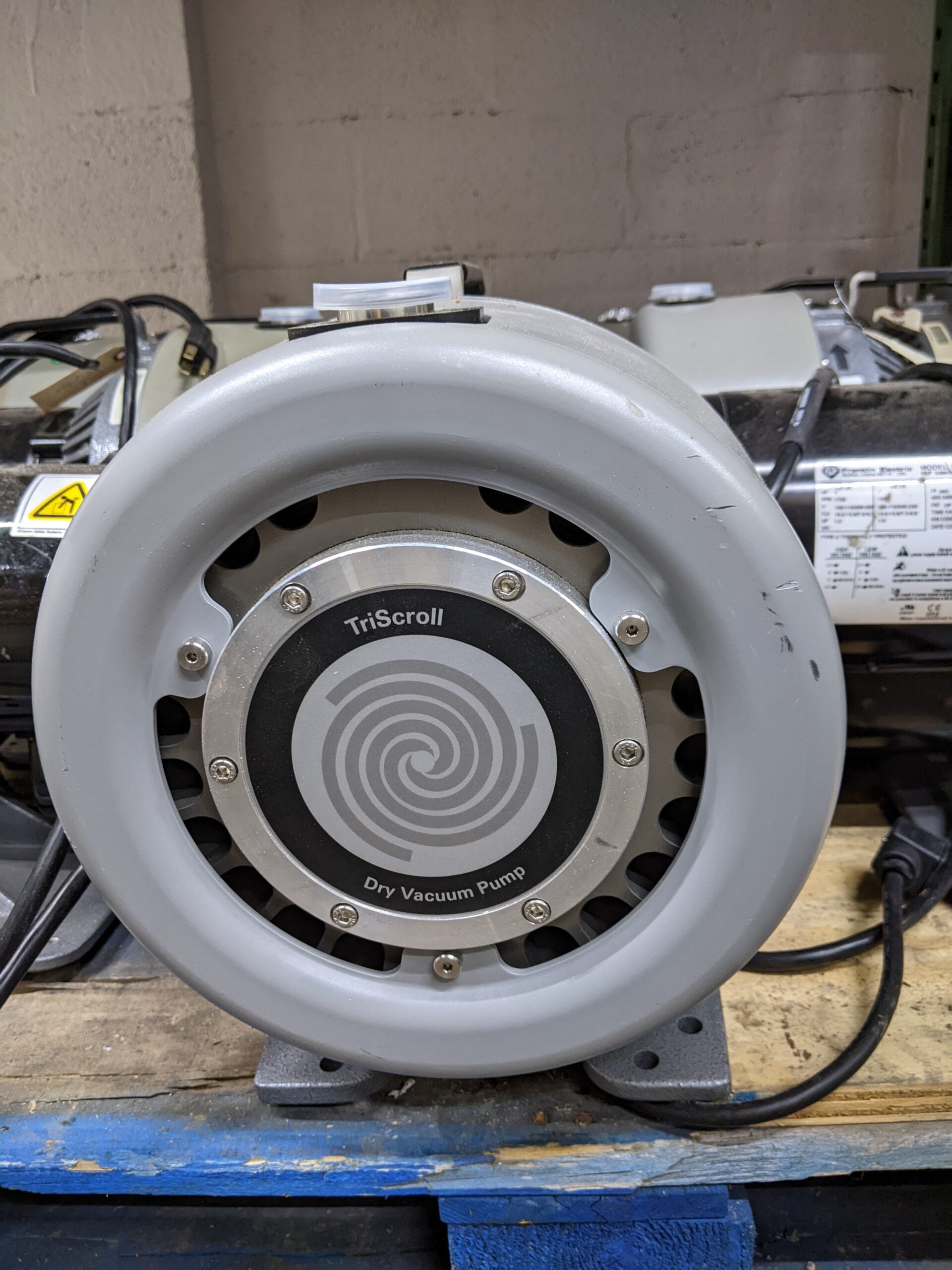

TriScroll 300
| Pumping speed | 60 Hz 250 l/m, 15 m3/hr, 8.8 cfm 50 Hz 210 l/m, 12.6 m3/hr, 7.4 cfm |
| Ultimate pressure | 1.3 x 10-2 mbar (1.0 x 10-2 Torr) |
| Maximum inlet pressure | 1.0 atmosphere (0 psig) |
| Maximum outlet pressure | 1.1 atmosphere (1.5 psig) |
| Inlet connection | NW25 |
| Exhaust connection | 1⁄4″ Female NPT with swivel |
| Gas ballast | 1⁄4″ Female NPT |
| Operating Voltages-1Ø models | 50/60Hz/100-115: 200-230 VAC |
| Operating Voltages-3Ø models | 50Hz/200-230, 380-415 VAC; 60Hz/ 200-230, 460 VAC |
| Weight | Pump only: 26.4 kg (58 lbs) Ship weight: 34.2 kg (75 lbs) |
| Compliance | CE, CSA/CUS |
